DP0150BLP4, DP0150ALP4 - 50V PNP SMALL SIGNAL TRANSISTOR

DP0150BLP4 Description

NEW PRODUCT .

DP0150BLP4 Features

* BVCEO > -50V
* IC = -100mA High Collector Current
* PD = 1000mW Power Dissipation
* 0.60mm2 Package Footprint, 13 times Smaller than SOT23
* 0.4mm Height Package Minimizing Off-Board Profile
* Complementary NPN Type: DN0150ALP4 / DN0150BLP4
* Totally Lead-Free & Fully R

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DP0150BLP4, DP0150ALP4. Please refer to the document for exact specifications by model.

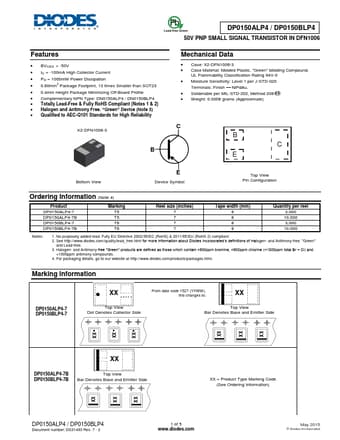

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DP0150BLP4, DP0150ALP4
Manufacturer
DIODES ↗
File Size
245.41 KB
Datasheet
DP0150ALP4-Diodes.pdf
Description
50V PNP SMALL SIGNAL TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: DP0150BLP4, DP0150ALP4.
Please refer to the document for exact specifications by model.
