DSM80100M-7, DSM80100M PNP TRANSISTOR

DSM80100M-7 Description

ADVANCE INFORMATION DSM80100M PNP TRANSISTOR WITH DUAL SERIES SWITCHING DIODE .

DSM80100M-7 Features

* Integrates one PNP Transistor (Q1) and two Switching Diodes (D1, D2) in a Single Compact Package
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3) Mechanical Data
* Case: SOT26
* Case Material: Molded Plastic, “Green”

DSM80100M-7 Applications

* shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated website, harmless against all damages. Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchase

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DSM80100M-7, DSM80100M. Please refer to the document for exact specifications by model.

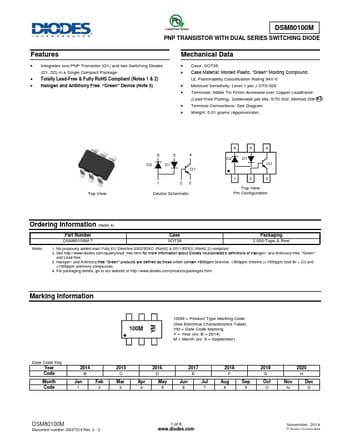

datasheet Preview Page 2 datasheet Preview Page 3
