DSRHD02

1.0A DSR BRIDGE DIODESTAR RECTIFIER

DSRHD02 Features

* Glass Passivated Bridge Rectifier

* Excellent High Temperature Stability

* 150ºC Operating Junction Temperature

* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free. “Green” Device (Note 3) Green DSRHD02

* DSRHD08 1.0A DSR BR

DSRHD02 Datasheet (218.79 KB)

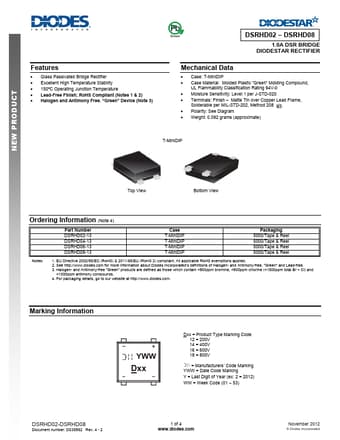

Preview of DSRHD02 PDF

Datasheet Details

Part number:

DSRHD02

Manufacturer:

DIODES ↗

File Size:

218.79 KB

Description:

1.0a dsr bridge diodestar rectifier.
