DSS4160U - NPN TRANSISTOR

Features

Epitaxial Planar Die Construction Low Collector-Emitter Saturation Voltage, VCE(SAT) Complementary PNP Type Available (DSS5160U) Ultra-Small Surface Mount Package Lead Free By Design/RoHS Compliant (Note 1) "Green Device" (Note 2) Mechanical Data.
Case: SOT-323 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V.

Datasheet Details

Part number	DSS4160U
Manufacturer	Diodes Incorporated
File Size	183.51 KB
Description	NPN TRANSISTOR
Datasheet	DSS4160U Datasheet

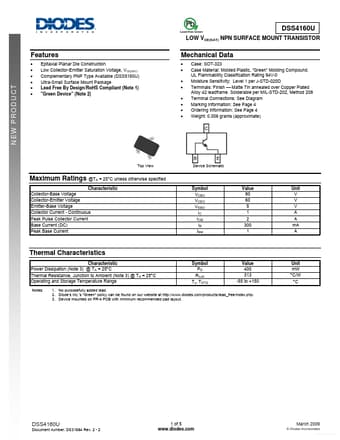

Additional preview pages of the DSS4160U datasheet.
