DSS5240T PNP LOW SATURATION TRANSISTOR

Diodes

Description

NOT RECOMMENDED FOR NEW DESIGN USE ZXTP5240F DSS5240T 40V PNP LOW SATURATION TRANSISTOR IN SOT23 .

📥 Download Datasheet

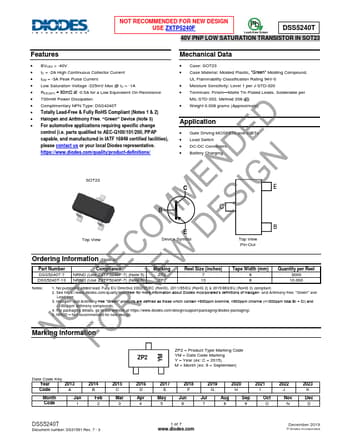

DSS5240T Datasheet Preview — Preview of DSS5240T PDF

Datasheet Specifications

Part number: DSS5240T
Manufacturer: DIODES ↗
File Size: 485.92 KB
Datasheet: DSS5240T-Diodes.pdf
Description: PNP LOW SATURATION TRANSISTOR

Features

* BVCEO > -40V
* IC = -2A High Continuous Collector Current
* ICM = -3A Peak Pulse Current
* Low Saturation Voltage -225mV Max @ IC = -1A
* RCE(SAT) = 90mΩ at -0.5A for a Low Equivalent On-Resistance
* 730mW Power Dissipation
* Complimentary NPN Type: DSS4240T
* Total

Applications

* requiring specific change control (i. e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www. diodes. com/quality/product-definitions/ Mechanical Data
* Case: SOT23
* Case Ma
