Part number:
DSS-113
Manufacturer:
Tyco Electronics
File Size:
79.47 KB
Description:
Two-way power divider 400 khz - 400 mhz.

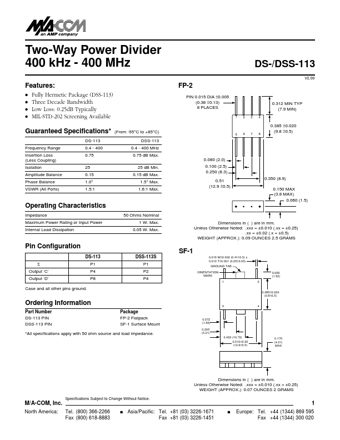

* q q q q DS-/DSS-113 V2.00 FP-2 PIN 0.015 DIA ±0.005 (0.38 ±0.13) 8 PLACES 1 2 3 4 Fully Hermetic Package (DSS-113) Three Decade Bandwidth Low Loss: 0.25dB Typically MIL-STD-202 Screening Available (From -55°C to +85°C) DSS-113 0.4 - 400 MHz 0.75 dB Max. 25 dB Min. 0.15 dB Max. 1.5° Max. 1.6:1 Ma
DSS-113
Tyco Electronics
79.47 KB
Two-way power divider 400 khz - 400 mhz.
