DSS-4832-101R Surface Mount Drum Core Power Inductors

📥 Download Datasheet  Datasheet Preview Page 1

Description

TransformingMagneticsTM SwitchmodePower Surface Mount Drum Core Power Inductors: DSS-4832 Series .

📥 Download Datasheet

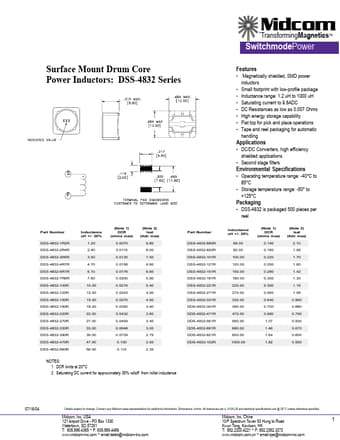

Preview of DSS-4832-101R PDF

Datasheet Specifications

Part number
DSS-4832-101R
Manufacturer
ETC
File Size
126.01 KB
Datasheet
DSS-4832-101R_ETC.pdf
Description
Surface Mount Drum Core Power Inductors

Features

* Magnetically shielded, SMD power inductors
* Small footprint with low-profile package
* Inductance range: 1.2 uH to 1000 uH
* Saturating current to 9.8ADC
* DC Resistances as low as 0.007 Ohms
* High energy storage capability
* Flat top for p

Applications

* DC/DC Converters, high efficiency shielded applications
* Second stage filters S Environmental Specifications F
* Operating temperature range: -40°C to 85°C
* Storage temperature range: -50° to +125°C Packaging
* DSS-4832 is packaged 500 pieces per ree
