DT2042-04SO - 4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY

Diodes

📥 Download Datasheet

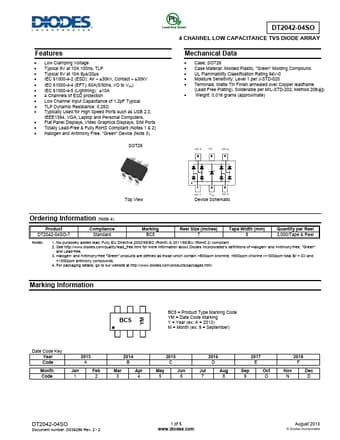

DT2042-04SO Datasheet Preview — Preview of DT2042-04SO PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DT2042-04SO
Manufacturer	DIODES ↗
File Size	286.83 KB
Description	4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY
Datasheet	DT2042-04SO-Diodes.pdf

DT2042-04SO Product details

Features

Low Clamping Voltage.
Typical 9V at 10A 100ns, TLP.
Typical 9V at 10A 8μs/20μs.
IEC 61000-4-2 (ESD): Air.
±30kV, Contact.
±30kV.
IEC 61000-4-4 (EFT): 60A(5/50ns, I/O to Vss).
IEC 61000-4-5 (Lightning): ±10A.
4 Channels of ESD protection.
Low Channel Input Capacitance of 1.2pF Typical.
TLP Dynamic Resistance: 0.25Ω.
Typically Used for High Speed Ports such as USB 2.0, IEEE1394, VGA, Laptop and Personal Computers,.
Flat Pane.
