DT28F320J5

5 Volt StrataFlash Memory

DT28F320J5 Features

* s High-Density Symmetrically-Blocked Architecture

* 64 128-Kbyte Erase Blocks (64 M)

* 32 128-Kbyte Erase Blocks (32 M) s 4.5 V

* 5.5 V VCC Operation

* 2.7 V

* 3.6 V and 4.5 V

* 5.5 V I/O Capable s 120 ns Read Access Time (32 M) 150 ns Read Access Time (64

DT28F320J5 Datasheet (304.17 KB)

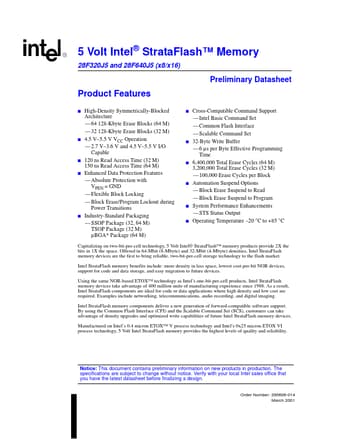

Preview of DT28F320J5 PDF

Datasheet Details

Part number:

DT28F320J5

Manufacturer:

Intel

File Size:

304.17 KB

Description:

5 volt strataflash memory.
