DXTN07100BP5, 100V NPN MEDIUM POWER LOW SATURATION TRANSISTOR

ADVANCE INFORMATION A Product Line of Diodes Incorporated DXTN07100BP5 100V NPN MEDIUM POWER LOW SATURATION TRANSISTOR PowerDI®5 .

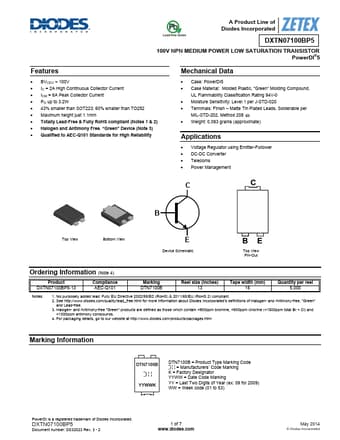

datasheet Preview Page 1 from Datasheet4u.com

DXTN07100BP5-Diodes.pdf

DXTN07100BP5 Datasheet Preview — Preview of DXTN07100BP5 PDF

Datasheet Details

Part number:

DXTN07100BP5

Manufacturer:

DIODES ↗

File Size:

280.70 KB

Description:

100V NPN MEDIUM POWER LOW SATURATION TRANSISTOR

Features

* BVCEO > 100V
* IC = 2A High Continuous Collector Current
* ICM = 6A Peak Collector Current
* PD up to 3.2W
* 43% smaller than SOT223; 60% smaller than TO252
* Maximum height just 1.1mm
* Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)

Applications

* Voltage Regulator using Emitter-Follower
* DC-DC Converter
* Telecoms
* Power Management C B Top View Bottom View E Device Schematic Top View Pin-Out Ordering Information (Note 4) Product DXTN07100BP5-13 Compliance AEC-Q101 Marking DTN7100B Reel size (inc
