DXTP07040CFG, 40V PNP TRANSISTOR

DXTP07040CFG 40V PNP LOW VCESAT TRANSISTOR IN POWERDI3333-8 .

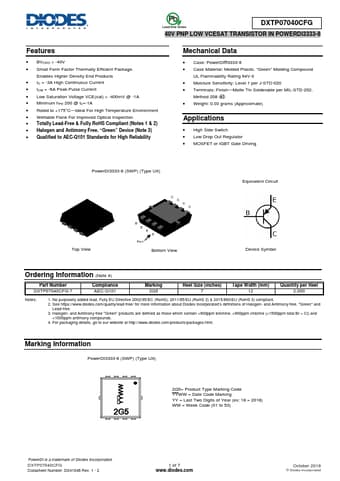

datasheet Preview Page 1 from Datasheet4u.com

DXTP07040CFG-Diodes.pdf

DXTP07040CFG Datasheet Preview — Preview of DXTP07040CFG PDF

Datasheet Details

Part number:

DXTP07040CFG

Manufacturer:

DIODES ↗

File Size:

723.16 KB

Description:

40V PNP TRANSISTOR

Features

* BVCEO > -40V
* Small Form Factor Thermally Efficient Package. Enables Higher Density End Products
* IC = -3A High Continuous Current
* ICM = -6A Peak Pulse Current
* Low Saturation Voltage VCE(sat) < -400mV @ -1A
* Minimum hFE 200 @ IC=-1A

Applications

* High Side Switch
* Low Drop Out Regulator
* MOSFET or IGBT Gate Driving PowerDI3333-8 (SWP) (Type UX) Top View C C C C B E E E Pin1 Bottom View Equivalent Circuit Device Symbol Ordering Information (Note 4) Part Number DXTP07040CFG-7 Compliance AEC-Q101 Marking 2G5
