DZ23C24, DZ23C2V7 - 300mW DUAL SURFACE MOUNT ZENER DIODE

Diodes

📥 Download Datasheet

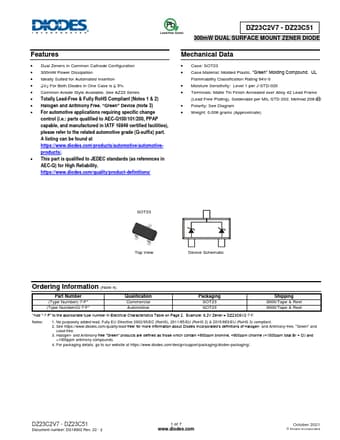

DZ23C24 Datasheet Preview — This datasheet PDF includes multiple part numbers: DZ23C24, DZ23C2V7. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DZ23C24, DZ23C2V7
Manufacturer	DIODES ↗
File Size	464.86 KB
Description	300mW DUAL SURFACE MOUNT ZENER DIODE
Datasheet	DZ23C2V7-Diodes.pdf
Note	This datasheet PDF includes multiple part numbers: DZ23C24, DZ23C2V7. Please refer to the document for exact specifications by model.

DZ23C24 Product details

Features

Dual Zeners in Common Cathode Configuration.
300mW Power Dissipation.
Ideally Suited for Automated Insertion.
VZ For Both Diodes in One Case is  5%.
Common Anode Style Available, See AZ23 Series.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
For automotive.
