DZ23C2V7-G - Small Signal Zener Diodes

Vishay

📥 Download Datasheet

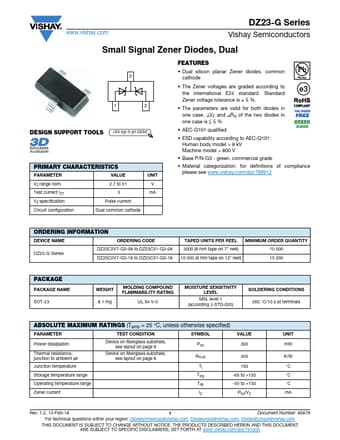

DZ23C2V7-G Datasheet Preview — Preview of DZ23C2V7-G PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DZ23C2V7-G
Manufacturer	Vishay ↗
File Size	126.06 KB
Description	Small Signal Zener Diodes
Datasheet	DZ23C2V7-G-Vishay.pdf

DZ23C2V7-G Product details

Features

Dual silicon planar Zener diodes, common cathode.
The Zener voltages are graded according to the international E24 standard. Standard Zener voltage tolerance is ± 5 %.
The parameters are valid for both diodes in one case. VZ and Rzj of the two diodes in one case is  5 %.
AEC-Q101 qualified.
ESD capability according to AEC-Q101: Human body model > 8 kV Machine model > 800 V.
Base P/N-G3 - green, commercial grade.
Material categ.
