DZT5551 Datasheet, Transistor, Diodes

DZT5551 Features

  • Transistor
  • BVCEO > 160V
  • BVEBO > 6V
  • IC = 600mA Continuous Collector Current
  • Low Saturation Voltage (150mV max @10mA)
  • hFE specified up to 50mA for a

PDF File Details

Part number:

DZT5551

Manufacturer:

DIODES ↗

File Size:

140.04kb

Download:

📄 Datasheet

Description:

Npn surface mount transistor.

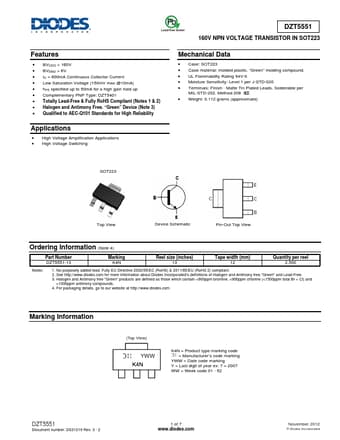

Datasheet Preview: DZT5551 📥 Download PDF (140.04kb)
Page 2 of DZT5551 Page 3 of DZT5551

DZT5551 Application

  • Applications
  • High Voltage Amplification Applications
  • High Voltage Switching DZT5551 160V NPN VOLTAGE TRANSISTOR IN SOT223 Mecha
