LM2902A - DUAL AND QUAD OPERATIONAL AMPLIFIERS

This page provides the datasheet information for the LM2902A, a member of the LM2902 DUAL AND QUAD OPERATIONAL AMPLIFIERS family.

Description

The LM2902/LM2904 series amplifiers consist of four and two independent high-gain operational amplifiers with very low input offset voltage specification.

Features

  • Wide Power Supply Voltage Range:.
  • Single Supply: 3V to 36V.
  • Dual Supplies: ±1.5V to ±18V.
  • Very Low Supply Current Drain.
  • LM2904 500µA.
  • Independent of Supply Voltage.
  • LM2902 700µA.
  • Independent of Supply Voltage.
  • Low Input Bias Current: 20nA.
  • Low Input Offset Voltage:.
  • A Version: 1mV typ.
  • Non-A Version: 2mV typ.
  • Large DC Voltage Gain: 100dB.
  • Wide Bandwidth (Unity Gain): 700kHz (Temperature Compensated).
  • Internally.

📥 Download Datasheet

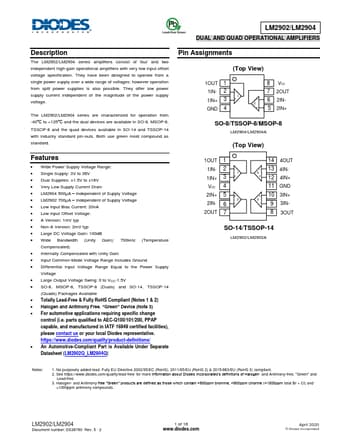

Datasheet preview – LM2902A
