LM2902A - 36V General Purpose Op Amps

Download the LM2902A datasheet PDF. This datasheet also covers the LM2904A variant, as both devices belong to the same 36v general purpose op amps family and are provided as variant models within a single manufacturer datasheet.

General Description

The LM2904A/2902A series of amplifiers are the newest highsupply voltage amplifiers with low offset, low power, and stable frequency response.

They incorporate 3PEAK’s proprietary and patented design techniques to achieve very good AC performance with 0.9-MHz bandwidth and 0.5-V/μs slew rate.

Key Features

  • Supply Voltage: 3 V to 36 V or ±1.5 V to ±18 V.
  • Low Supply Current: 100 μA per channel.
  • Input Common-Mode Voltage Range Includes Ground.
  • Can Work as Comparators.
  • Rail-to-Rail Output.
  • Bandwidth: 0.9 MHz.
  • Slew Rate: 0.5 V/μs.
  • Excellent EMI Suppress Performance: 71 dB at 1 GHz.
  • Offset Voltage: ±3 mV Maximum.
  • 40°C to 125°C Operation Temperature Range.
  • Qualified for Automotive.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LM2904A-3Peak.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number LM2902A
Manufacturer 3Peak
File Size 795.10 KB
Description 36V General Purpose Op Amps
Datasheet download datasheet LM2902A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LM2902A DUAL AND QUAD OPERATIONAL AMPLIFIERS Diodes
LM2902A Quad Operational Amplifier Fairchild Semiconductor
LM2902AM Quad Operational Amplifier Fairchild Semiconductor
LM2902AQ AUTOMOTIVE COMPLIANT DUAL AND QUAD OPERATIONAL AMPLIFIERS Diodes
LM2902 Quad Operational Amplifier Fairchild Semiconductor

Other Datasheets by 3Peak

Part Number Description
LM2901A 36V Low Power Comparators
LM2903A 36V Low Power Comparators
LM2903D 36V Dual Comparators
LM2904A 36V General Purpose Op Amps

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

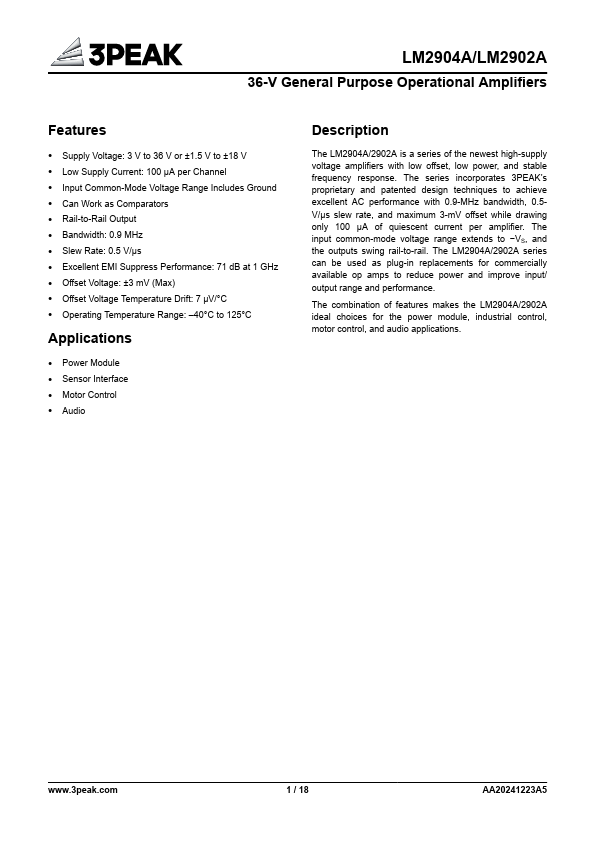

LM2904A/LM2902A 36-V General Purpose Op Amps, Automotive Qualification Features ⚫ Supply Voltage: 3 V to 36 V or ±1.5 V to ±18 V ⚫ Low Supply Current: 100 μA per channel ⚫ Input Common-Mode Voltage Range Includes Ground ⚫ Can Work as Comparators ⚫ Rail-to-Rail Output ⚫ Bandwidth: 0.9 MHz ⚫ Slew Rate: 0.5 V/μs ⚫ Excellent EMI Suppress Performance: 71 dB at 1 GHz ⚫ Offset Voltage: ±3 mV Maximum ⚫ –40°C to 125°C Operation Temperature Range ⚫ Qualified for Automotive Applications with AEC-Q100 Reliability Test Applications ⚫ Automotive ⚫ Sensor Interface ⚫ Motor Control Description The LM2904A/2902A series of amplifiers are the newest highsupply voltage amplifiers with low offset, low power, and stable frequency response.
