LM2904A - 36V General Purpose Op Amps

Product Overview

3Peak

Datasheet Details

Part number	LM2904A
Manufacturer	3Peak
File Size	795.10 KB
Description	36V General Purpose Op Amps
Datasheet	LM2904A Datasheet

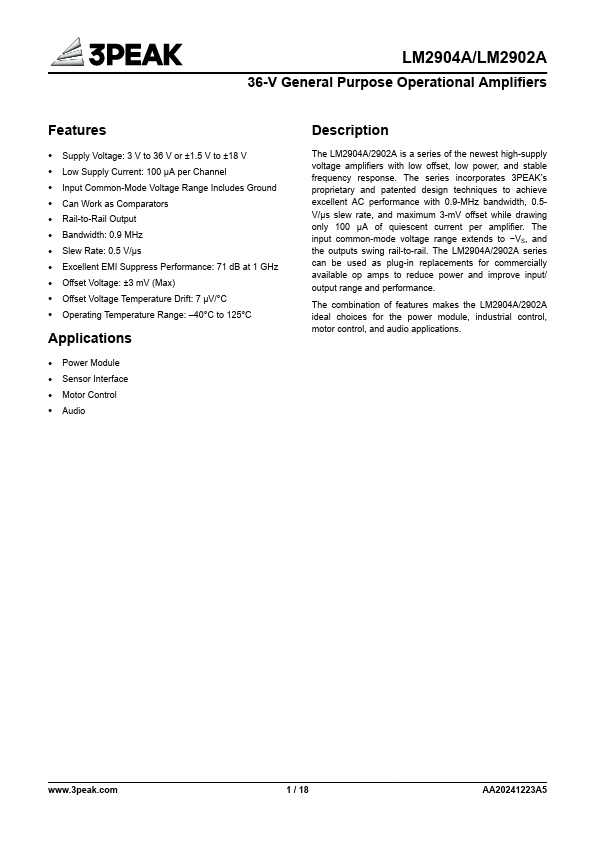

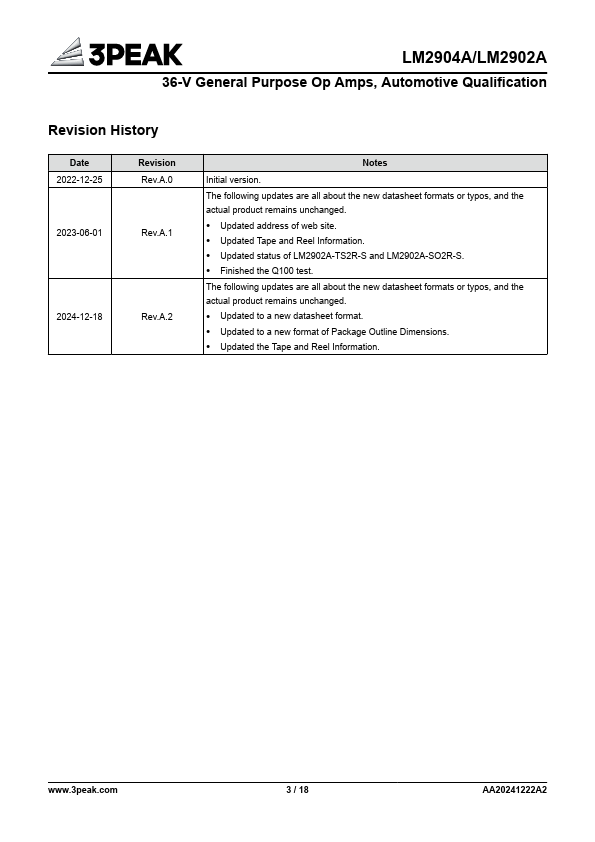

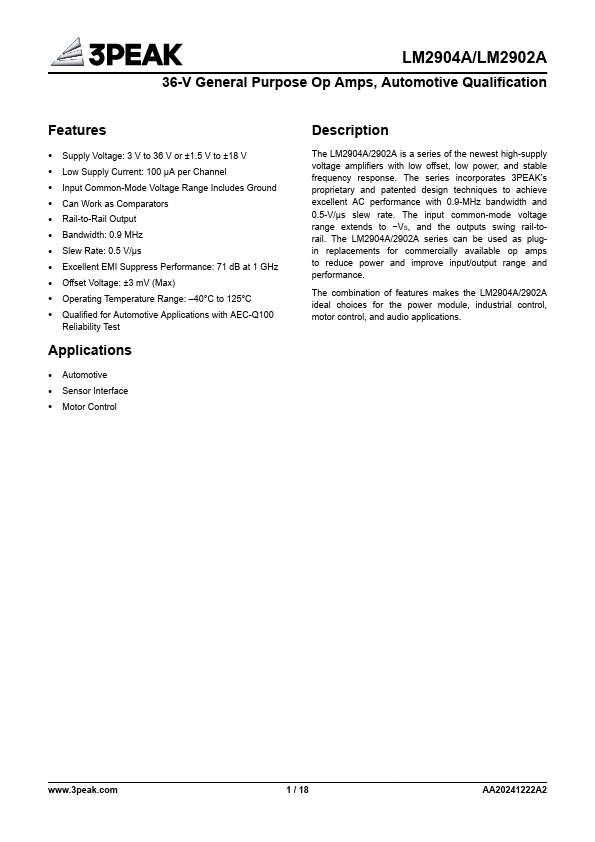

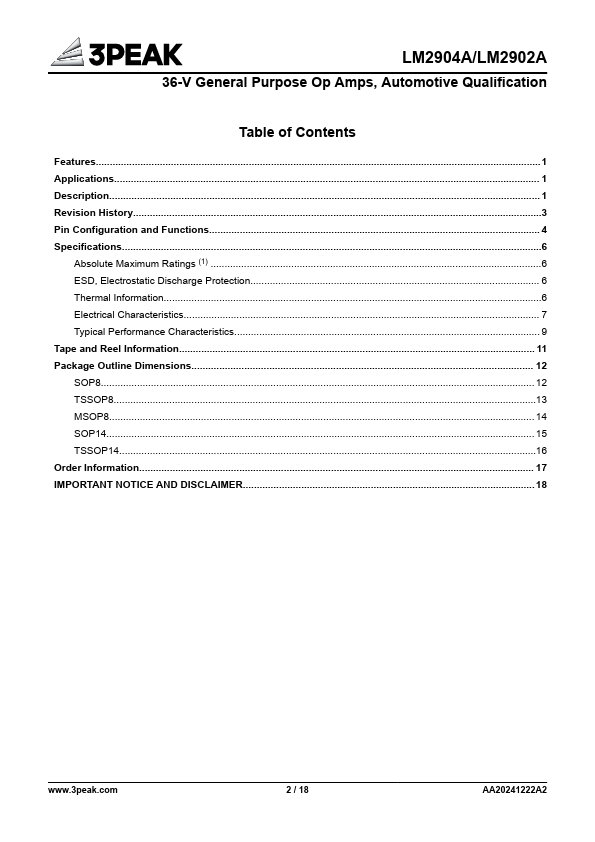

Additional preview pages of the LM2904A datasheet.

LM2904A Product details

Description

The LM2904A/2902A series of amplifiers are the newest highsupply voltage amplifiers with low offset, low power, and stable frequency response.

They incorporate 3PEAK’s proprietary and patented design techniques to achieve very good AC performance with 0.9-MHz bandwidth and 0.5-V/μs slew rate.

Features

Supply Voltage: 3 V to 36 V or ±1.5 V to ±18 V.
Low Supply Current: 100 μA per channel.
Input Common-Mode Voltage Range Includes Ground.
Can Work as Comparators.
Rail-to-Rail Output.
Bandwidth: 0.9 MHz.
Slew Rate: 0.5 V/μs.
Excellent EMI Suppress Performance: 71 dB at 1 GHz.
Offset Voltage: ±3 mV Maximum.
40°C to 125°C Operation Temperature Range.
Qualified for Automotive.
