MBR15100C - HIGH VOLTAGE POWER SCHOTTKY RECTIFIER

Datasheet Summary

Description

High voltage dual Schottky rectifier suited for switch mode power supplies and other power converters.

This device is intended for use in medium voltage operation, and particularly, in high frequency circuits where low switching losses and low noise are required.

Features

  • Low Forward Voltage: 0.85V @ +25oC.
  • High Surge Current Capability.
  • +150oC Operating Junction Temperature.
  • 15A Total (7.5A Each Diode Leg).
  • Guard-Ring for Stress Protection.
  • Pb-free Package.
  • TO-220-3 (2) and TO-220F-3 (Option 1).
  • Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
  • Available in “Green” Packages: TO-220-3 (2), TO-220F-3 (Option 1).
  • Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3) M.

📥 Download Datasheet

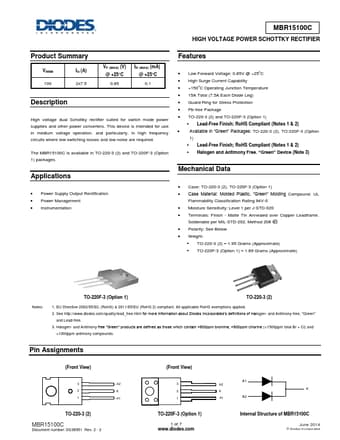

Datasheet preview – MBR15100C

Datasheet Details

Part number MBR15100C
Manufacturer DIODES
File Size 318.62 KB
Description HIGH VOLTAGE POWER SCHOTTKY RECTIFIER
Datasheet download datasheet MBR15100C Datasheet
Additional preview pages of the MBR15100C datasheet.
