MBR20100C Datasheet, Rectifier, Diodes

MBR20100C Features

  • Rectifier
  • Low Forward Voltage: 0.85V @ +25°C
  • High Surge Current Capability
  • +150°C Operating Junction Temperature
  • 20A Total (10A Each Diode Leg)
  • G

PDF File Details

Part number:

MBR20100C

Manufacturer:

DIODES ↗

File Size:

381.20kb

Download:

📄 Datasheet

Description:

High voltage power schottky rectifier. High voltage dual Schottky rectifier suited for switch mode power supplies and other power converters. This device is intended for us

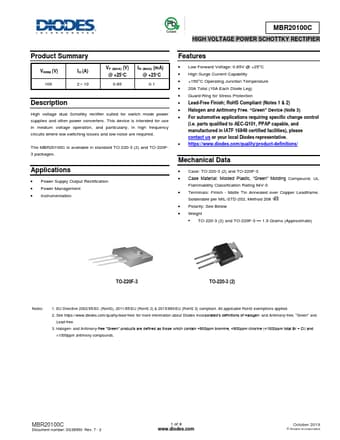

Datasheet Preview: MBR20100C 📥 Download PDF (381.20kb)
Page 2 of MBR20100C Page 3 of MBR20100C

MBR20100C Application

  • Applications
  • Power Supply Output Rectification
  • Power Management
  • Instrumentation Features
  • Low Forward Voltag
