MBR20150C Datasheet, Rectifier, Diodes

MBR20150C Features

  • Rectifier
  • Low Forward Voltage: 0.9V @ +25C
  • High Surge Current Capacity
  • +150C Operating Junction Temperature
  • 20A Total (10A Per Diode Leg)
  • Guard

PDF File Details

Part number:

MBR20150C

Manufacturer:

DIODES ↗

File Size:

338.23kb

Download:

📄 Datasheet

Description:

High voltage power schottky rectifier. High voltage dual Schottky rectifier suited for switch mode power supplies and other power converters. This device is intended for us

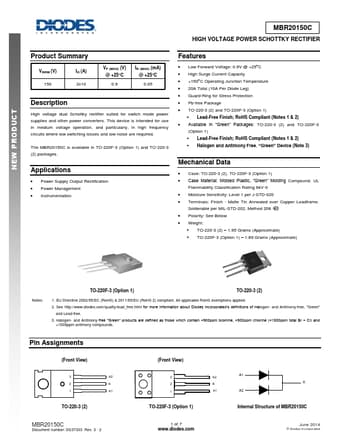

Datasheet Preview: MBR20150C 📥 Download PDF (338.23kb)
Page 2 of MBR20150C Page 3 of MBR20150C

MBR20150C Application

  • Applications
  • Power Supply Output Rectification
  • Power Management
  • Instrumentation Features
  • Low Forward Voltag
