MMBT3904FZ - NPN SMALL SIGNAL TRANSISTOR

MMBT3904FZ Description

NEW PRODUCT .

MMBT3904FZ Features

* BVCEO > 40V
* IC = 200mA High Collector Current
* PD = 925mW Power Dissipation
* 0.36mm2 Package Footprint, 40% Smaller than DFN1006
* 0.4mm Height Package Minimizing Off-Board Profile
* Complementary PNP Type MMBT3906FZ
* Totally Lead-Free & Fully RoHS Compliant (Notes

MMBT3904FZ Applications

* shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated website, harmless against all damages. Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchase

📥 Download Datasheet

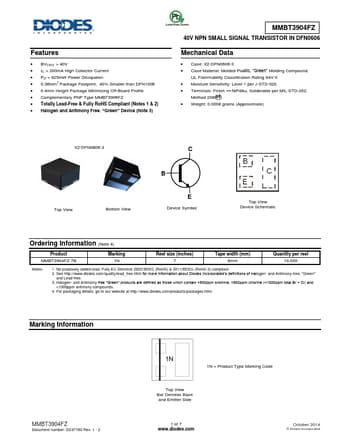

Preview of MMBT3904FZ PDF
datasheet Preview Page 2 datasheet Preview Page 3
