MMBT3904FN3 Datasheet, Transistor, Pan Jit International

MMBT3904FN3 Features

• Transistor 0.042(1.05) 0.037(0.95) 0.026(0.65) 0.021(0.55)
• NPN epitaxial silicon, planar design
• Collector-emitter voltage VCE = 40V
• Collector current IC = 200mA

PDF File Details

Part number:

MMBT3904FN3

Manufacturer:

Pan Jit International

File Size:

160.21kb

Download:

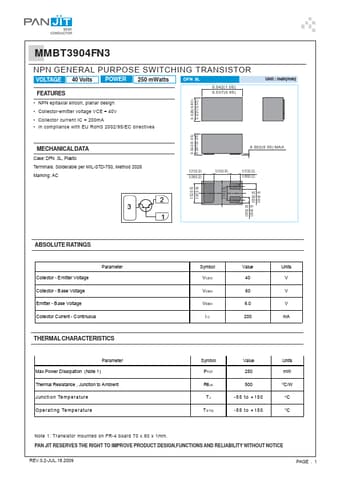

📄 Datasheet

Description:

Npn general purpose switching transistor.
