MMBT3904W - NPN GENERAL PURPOSE SWITCHING TRANSISTOR

Product Overview

Pan Jit International

📥 Download Datasheet

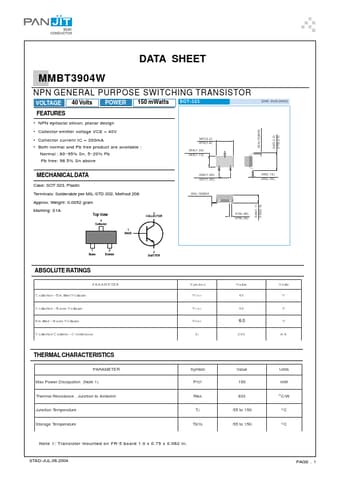

MMBT3904W NPN GENERAL PURPOSE SWITCHING TRANSISTOR by Pan Jit International - Datasheet Preview — Datasheet preview – MMBT3904W

Datasheet Details

Part number	MMBT3904W
Manufacturer	Pan Jit International
File Size	98.84 KB
Description	NPN GENERAL PURPOSE SWITCHING TRANSISTOR
Datasheet	MMBT3904W Datasheet
Additional preview pages of the MMBT3904W datasheet.

Product details

Features

NPN epitaxial silicon, planar design.
Collector-emitter voltage VCE = 40V.
Collector current IC = 200mA.
Both normal and Pb free product are available : Normal : 80~95% Sn, 5~20% Pb Pb free: 98.5% Sn above .087(2.2) .070(1.8) .054(1.35) .045(1.15) .004(.10)MIN. .087(2.2) .078(2.0) Unit: inch (mm).
