MSB10M - 1.0A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

Description

Suitable for AC to DC bridge full-wave rectification for SMPS, LED lighting, adapters, battery chargers, home appliances, office equipment and telecommunication applications.

Features

  • Glass Passivated Die Construction.
  • Compact, Thin Profile Package Design.
  • Reliable Robust Construction.
  • Ideal for SMT Manufacturing.
  • Lead Free Finish; RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3) Mechanical Data.
  • Case: MSB.
  • Case Material: Molded Plastic; UL Flammability Classification Rating 94V-0.
  • Moisture Sensitivity: Level 1 per J-STD-020.
  • Terminals: Finish.
  • Matte Tin Annealed over Copper Leadframe;.

📥 Download Datasheet

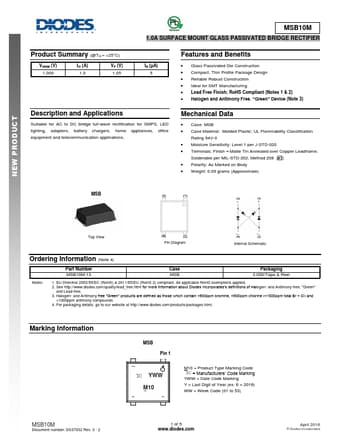

Datasheet preview – MSB10M
