PAM2423

PWM STEP-UP DC-DC CONVERTER

PAM2423 Features

* Greater than 90% Efficiency

* Adjustable Output Voltage Up to 24V

* Internal 24V Power MOSFET

* Peak Current 3A, 4.5A, 5.5A

* 520kHz Frequency

* Built-In Overvoltage Protection (OVP)

* Open Protection

* Programmable Soft-Start Functio

PAM2423 General Description

The PAM242x devices are high-performance, fixed frequency, current-mode PWM step-up DC/DC converters that incorporate internal power MOSFETs. The PAM242x includes an integrated power MOSFET that supports peak currents of up to 3A/4.5A/5.5A. The PAM242x utilize simple external loop compensation allow.

PAM2423 Datasheet (440.78 KB)

Rating: 1 ★ (3 votes)

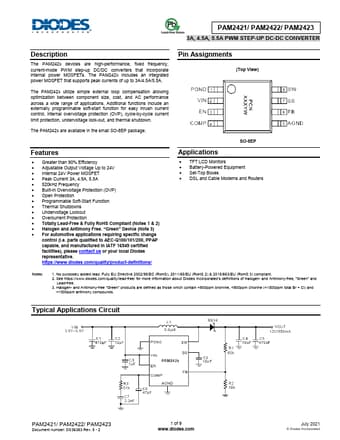

Preview of PAM2423 PDF

Datasheet Details

Part number:

PAM2423

Manufacturer:

DIODES ↗

File Size:

440.78 KB

Description:

Pwm step-up dc-dc converter.
