PAM2400, 3-Pin Synchronous Step-Up DC/DC Converter

3-Pin Synchronous Step-Up DC/DC Converter .
The PAM2400 is a high efficiency step-up DC/DC converter, delivering a fixed output voltage of 2.

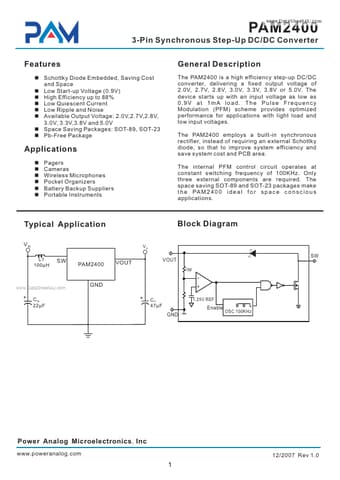

datasheet Preview Page 1 from Datasheet4u.com

PAM2400_PowerAnalogMicoelectronics.pdf

PAM2400 Datasheet Preview — Preview of PAM2400 PDF

Datasheet Details

Part number:

PAM2400

Manufacturer:

Power Analog Micoelectronics

File Size:

239.40 KB

Description:

3-Pin Synchronous Step-Up DC/DC Converter

Features

* n Schottky Diode Embedded, Saving Cost and Space n Low Start-up Voltage (0.9V) n High Efficiency up to 88% n Low Quiescent Current n Low Ripple and Noise n Available Output Voltage: 2.0V,2.7V,2.8V, 3.0V, 3.3V,3.8V and 5.0V n Space Saving Packages: SOT-89, SOT-23 n Pb-Free Package PAM2400 General D

Applications

* with light load and low input voltages. The PAM2400 employs a built-in synchronous rectifier, instead of requiring an external Schottky diode, so that to improve system efficiency and save system cost and PCB area. The internal PFM control circuit operates at constant switching frequency of 100KHz.
