PI7C9X760

I2C-bus/SPI to UART Bridge Controller

PI7C9X760 Features

* ÎÎSingle channel full-duplex UART ÎÎSupport I2C-bus or SPI interface ÎÎ64 bytes FIFO (transmitter and receiver) ÎÎFully compatible with industrial standard 16C450 and equivalent ÎÎBaud Rates up to 16Mbit/s in 4X sampling clock rate ÎÎProgrammable character formatting àà 5-bit, 6-bit, 7-bit or 8-bit

PI7C9X760 General Description

The PI7C9X760 is a I2C-bus/SPI to a single-channel high performance UART bridge controller. It offers data rates up to 33 Mbps and guarantees low operating and sleeping current. The PI7C9X760 also has up to 8 additional programmable general purpose I/O [GPIO] pins. The device comes in very small TSS.

PI7C9X760 Datasheet (3.24 MB)

Preview of PI7C9X760 PDF

Datasheet Details

Part number:

PI7C9X760

Manufacturer:

DIODES ↗

File Size:

3.24 MB

Description:

I2c-bus/spi to uart bridge controller.

📁 Related Datasheet

PI7C9X752 - High Performance 1.62V To 3.6V Dual Uart (Diodes)
Pb Lead-free Green A product Line of Diodes Incorporated PI7C9X752 High Performance 1.62V To 3.6V Dual Uart with 64-Byte FIFO Features ÎÎ1.62V to 3..

PI7C9X7954 - PCI Express Quad UART (Diodes)
PI7C9X7954 PCI Express® Quad UART Datasheet Revision 2 October 2017 Document Number DS40138 Rev 2-2 1545 Barber Lane Milpitas, CA 95035 Telephone: 4.

PI7C9X110 - PCI Express-to-PCI Reversible Bridge (DIODES)
PI7C9X110 PCI Express-to-PCI Reversible Bridge DATASHEET Revision 8 January 2021 Document Number DS40251 Rev 8-2 1545 Barber Lane Milpitas, CA 95035.

PI7C9X110 - PCI Express-to-PCI Reversible Bridge (Pericom Semiconductor Corporation)
.. PI7C9X110 PCI Express-to-PCI Reversible Bridge Revision 2.4 3545 North 1ST Street, San Jose, CA 95134 Phone: 1-877-PERICOM (1-87.

PI7C9X111SL - PCI Express-to-PCI Reversible Bridge (Diodes)
PI7C9X111SL PCI Express-to-PCI Reversible Bridge Datasheet October 2018 Revision 5 Document Number DS40298 Rev 5-2 1545 Barber Lane Milpitas, CA 950.

PI7C9X113SL - PCI Express-to-PCI Bridge (DIODES)
PI7C9X113SL PCI Express-to-PCI Bridge Datasheet January 2021 Revision 5 Document Number DS40300 Rev 5-2 1545 Barber Lane Milpitas, CA 95035 Telephon.

PI7C9X118SL - PCI Express-to-PCI Bridge (DIODES)
PI7C9X118SL PCI Express-to-PCI Bridge Datasheet January 2021 Revision 5 Document Number DS40301 Rev 5-2 1545 Barber Lane Milpitas, CA 95035 Telephon.

PI7C9X130 - PCI Express to PCI-X Reversible Bridge (DIODES)
PI7C9X130 PCI Express to PCI-X Reversible Bridge DATASHEET Revision 8 January 2021 Document Number DS40252 Rev 8-2 1545 Barber Lane Milpitas, CA 950.

TAGS

PI7C9X760 I2C-bus SPI UART Bridge Controller Diodes

Image Gallery

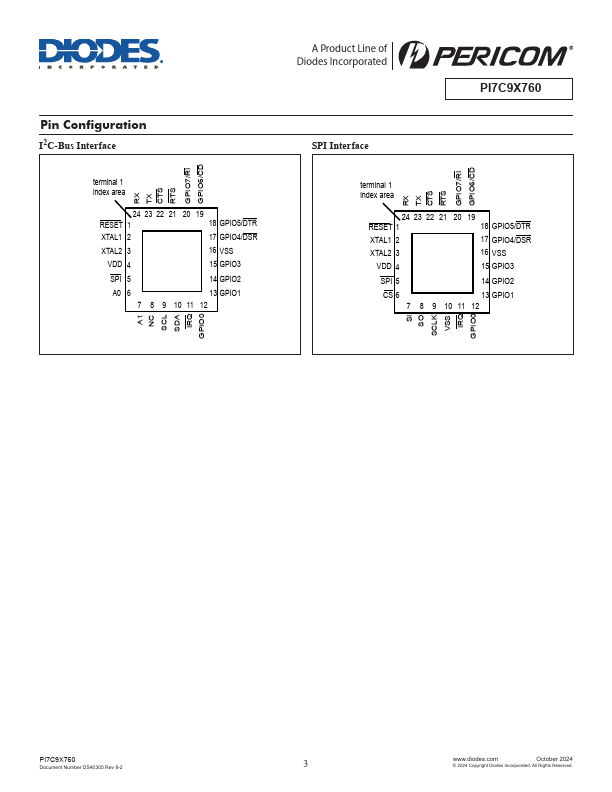

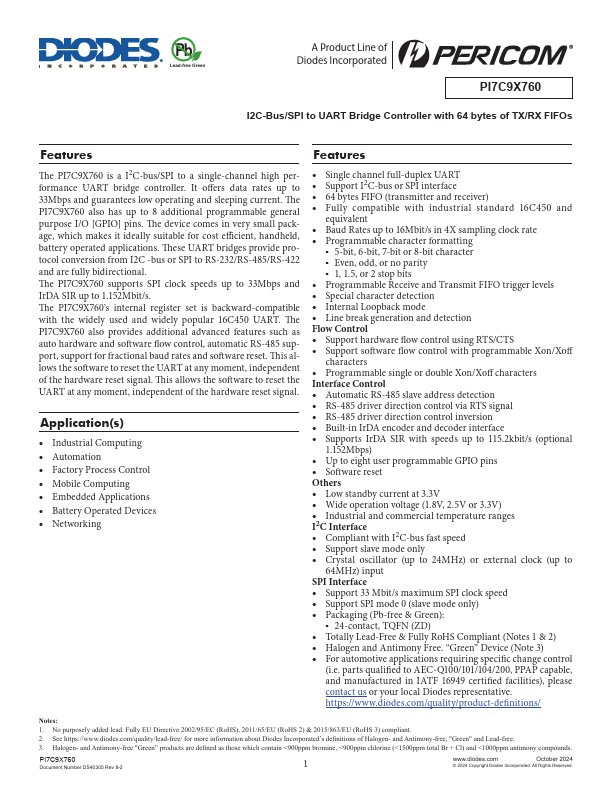

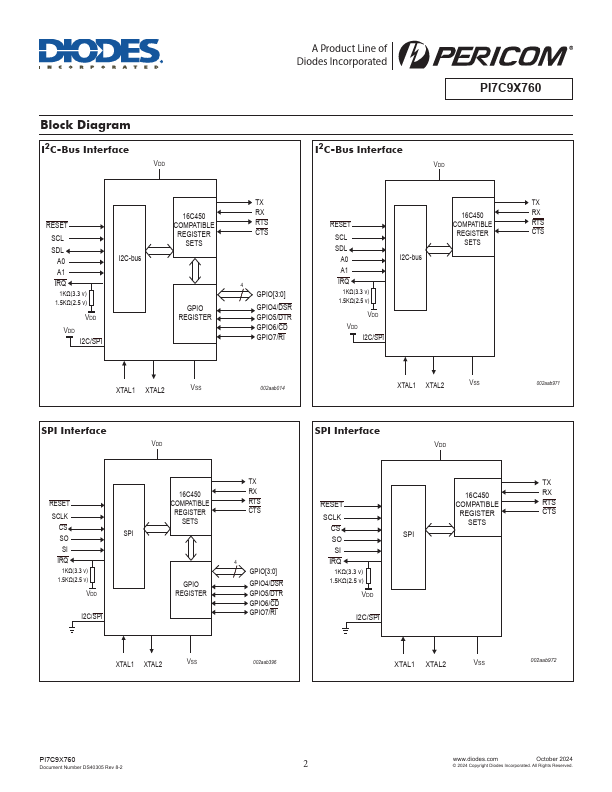

PI7C9X760 Datasheet Preview Page 2 PI7C9X760 Datasheet Preview Page 3
