SBL1050, SBL1030 10A SCHOTTKY BARRIER RECTIFIER

SBL1050 Description

SBL1030 - SBL1060 10A SCHOTTKY BARRIER RECTIFIER .

SBL1050 Features

* Schottky Barrier Chip
* Guard Ring Die Construction for Transient Protection
* Low Power Loss, High Efficiency
* High Surge Capability
* High Current Capability and Low Forward Voltage Drop
* For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Prot

SBL1050 Applications

* Lead Free Finish, RoHS Compliant (Note 3) Mechanical Data
* Case: TO-220AC
* Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
* Moisture Sensitivity: Level 1 per J-STD-020C
* Polarity: See Diagram
* Terminals: Finish
* Bright Tin. Solderabl

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SBL1050, SBL1030. Please refer to the document for exact specifications by model.

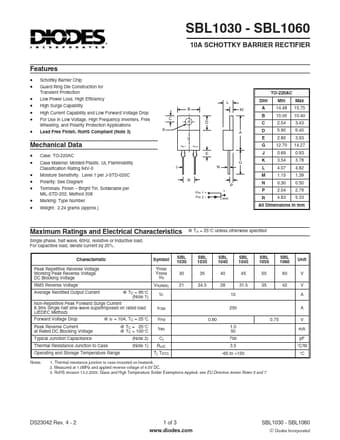

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SBL1050, SBL1030
Manufacturer
DIODES ↗
File Size
58.56 KB
Datasheet
SBL1030-Diodes.pdf
Description
10A SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SBL1050, SBL1030.
Please refer to the document for exact specifications by model.
