SBL1040CTP - 10A SCHOTTKY BARRIER RECTIFIER

Datasheet Summary

Features

  • Low Forward Voltage Drop.
  • Soft, Fast Switching Capability.
  • Schottky Barrier Chip.
  • ITO-220S Heat Sink Tab Electrically Isolated from Cathode.
  • UL Approval in Accordance with UL 1557, Reference No. E94661 SBL1040CTP 10A.

📥 Download Datasheet

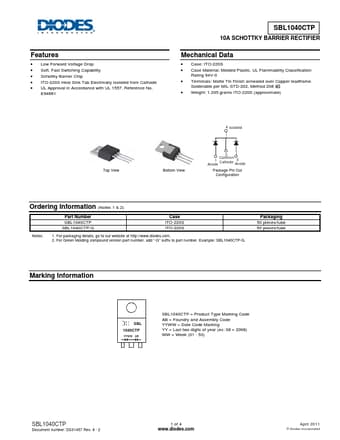

Datasheet preview – SBL1040CTP

Datasheet Details

Part number SBL1040CTP
Manufacturer DIODES
File Size 64.34 KB
Description 10A SCHOTTKY BARRIER RECTIFIER
