SBL1040CT - 10A Schottky Barrier Rectifier

Product Overview

Part number	SBL1040CT
Manufacturer	SEP ELECTRONIC
File Size	29.01 KB
Description	10A Schottky Barrier Rectifier
Datasheet	SBL1040CT Datasheet
Note	This datasheet PDF includes multiple part numbers: SBL1040CT, SBL1030CT. Please refer to the document for exact specifications by model.

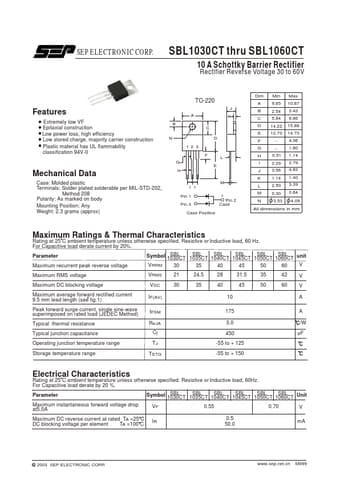

Additional preview pages of the SBL1040CT datasheet.

Extremely low VF Epitaxial construction Low power loss, high efficiency Low stored charge, majority carrier construction Plastic material has UL flammability classification 94V-0 Mechanical Data Case: Molded plastic Terminals: Solder plated solderable per MIL-STD-202, Method 208 Polarity: As marked on body Mounting Position: Any Weight: 2.3 grams (approx) TO-220 J AK B C ND 12 3 FL GE H M II Pin 1 Pin 3 + Pin 2 Case Case Positive Dim Min Max A 9.65 10.67 B 2.54 3.43 C 5.84 6.86 D 14.22 15.
