SBL1030 - 10A Schottky Barrier Rectifier

Product Overview

Part number	SBL1030
Manufacturer	SEP ELECTRONIC
File Size	28.89 KB
Description	10A Schottky Barrier Rectifier
Datasheet	SBL1030 Datasheet

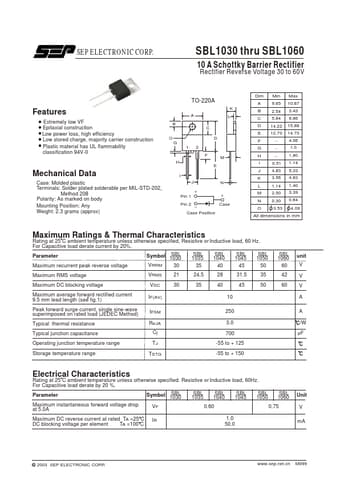

Additional preview pages of the SBL1030 datasheet.

Extremely low VF Epitaxial construction Low power loss, high efficiency Low stored charge, majority carrier construction Plastic material has UL flammability classification 94V-0 Mechanical Data Case: Molded plastic Terminals: Solder plated solderable per MIL-STD-202, Method 208 Polarity: As marked on body Mounting Position: Any Weight: 2.3 grams (approx) TO-220A K AL B C O G 12 D FM HE I J N + Pin 1 + Pin 2 - Case Case Positive Dim Min Max A 9.65 10.67 B 2.54 3.43 C 5.84 6.86 D 14.2.
