SBL1040CTSH - SCHOTTKY BARRIER RECTIFIER

Datasheet Summary

Features

  • Halogen-free type.
  • Compliance to RoHS produc.
  • Low forward voltage drop.
  • High current capacity.
  • High reliability.
  • High surge current capability.
  • 10 Amperes total (5 Amperes per diode leg).
  • Plastic Material-UL Recognition Flammability Classification 94V-0.

📥 Download Datasheet

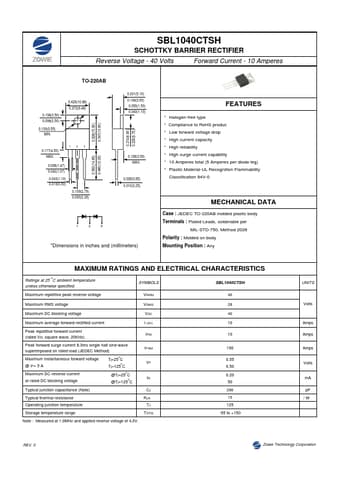

Datasheet preview – SBL1040CTSH
