SBL1045CFSH - SCHOTTKY BARRIER RECTIFIER

Datasheet Summary

Features

  • Halogen-free type.
  • Compliance to RoHS produc.
  • Low forward voltage drop.
  • High current capacity.
  • High reliability.
  • High surge current capability.
  • 10 Amperes total (5 Amperes per diode leg).
  • Plastic Material-UL Recognition Flammability Classification 94V-0.

📥 Download Datasheet

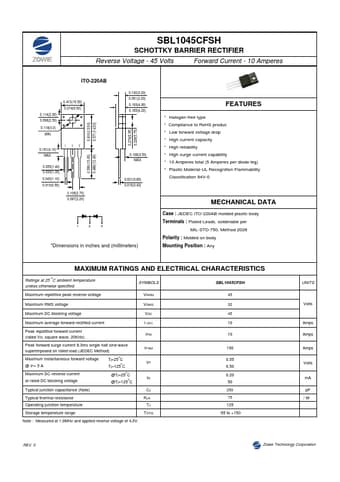

Datasheet preview – SBL1045CFSH

Datasheet Details

Part number SBL1045CFSH
Manufacturer Zowie Technology
File Size 66.28 KB
Description SCHOTTKY BARRIER RECTIFIER
Datasheet download datasheet SBL1045CFSH Datasheet
Additional preview pages of the SBL1045CFSH datasheet.

📁 Similar Datasheet

  • SBL1045CL - Switchmode Dual Schottky Barrier Power Rectifiers (Mospec Semiconductor)
  • SBL1045CT - 10A Schottky Barrier Rectifier (SEP ELECTRONIC)
  • SBL1045CT - SCHOTTKY BARRIER RECTIFIERS (LITE-ON)
  • SBL1045CT - 10A SCHOTTKY BARRIER RECTIFIER (Diodes)
  • SBL1045CT - Schottky Barrier Rectifier (GME)
  • SBL1045CT - SCHOTTKY BARRIER RECTIFIER (GALAXY ELECTRICAL)
  • SBL1045CT - SCHOTTKY BARRIER RECTIFIER (JCST)
  • SBL1045CTW - SCHOTTKY BARRIER RECTIFIERS (LITE-ON)
  • SBL1045 - Schottky Barrier Rectifier (GME)
  • SBL1045 - Schottky Barrier Rectifier (Kexin)
Other Datasheets by Zowie Technology

Full PDF Text Transcription

Click to expand full text
SBL1045CFSH SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 45 Volts Forward Current - 10 Amperes ITO-220AB 0.610(15.50) 0.571(14.50) 0.114(2.90) 0.098(2.50) 0.118(3.0) MIN. 0.413(10.50) 0.374(9.50) 0.161(4.10) MAX. 123 0.055(1.40) 0.039(1.00) 0.043(1.10) 0.019(0.50) 0.106(2.70) 0.087(2.20) 0.590(15.00) 0.488(12.40) 0.274(6.95) 0.226(5.75) 0.130(3.30) 0.091(2.30) 0.193(4.90) 0.165(4.20) 0.138(3.50) MAX. 0.031(0.80) 0.016(0.
