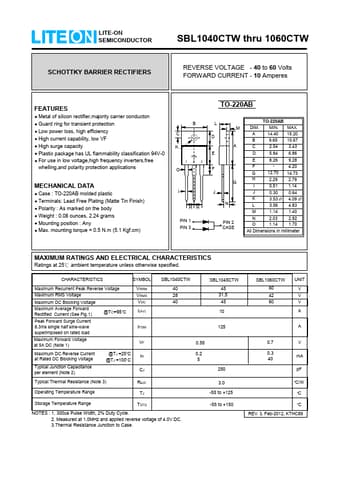

LITE-ON SEMICONDUCTOR
SCHOTTKY BARRIER RECTIFIERS
SBL1040CTW thru 1060CTW
REVERSE VOLTAGE - 40 to 60 Volts FORWARD CURRENT - 10 Amperes
FEATURES
Metal of silicon rectifier,majority carrier conducton Guard ring for transient protection Low power loss, high efficiency High current capability, low VF High surge capacity Plastic package has UL flammability classification 94V-0 For use in low voltage,high frequency inverters,free whelling,and polarity protection applications
MECHANICAL DATA
Case : TO-220AB molded plastic Terminals: Lead Free Plating (Matte Tin Finish) Polarity : As marked on the body Weight : 0.08 ounces, 2.24 grams Mounting position : Any Max. mounting torque = 0.5 N.m (5.1 Kgf.cm)
TO-220AB
B C K
PIN 12 3
O
I
HH PIN 1 PIN 3
L M
D A
E
F
G J
N
PIN 2 CASE
TO-220AB
DIM.
