SBR130S3 - SUPER BARRIER RECTIFIER

Datasheet Summary

Features

  • Low Forward Voltage Drop.
  • Low Reverse Leakage.
  • Excellent High Temperature Stability.
  • Patented Super Barrier Rectifier Technology.
  • Soft, fast switching capability.
  • +150°C Operating Junction Temperature.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3) SBR130S3 1A SBR® SUPER.

📥 Download Datasheet

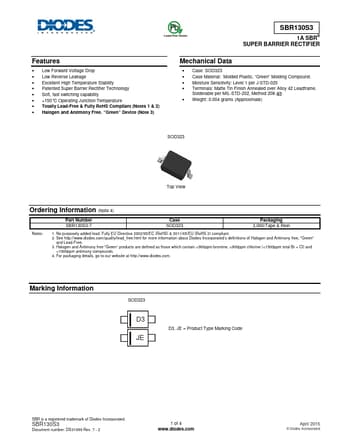

Datasheet preview – SBR130S3

Datasheet Details

Part number SBR130S3
Manufacturer DIODES
File Size 124.63 KB
Description SUPER BARRIER RECTIFIER
Datasheet download datasheet SBR130S3 Datasheet
Additional preview pages of the SBR130S3 datasheet.

📁 Similar Datasheet

  • SBR130S3 - Super barrier rectifier (APD)
  • SBR13003 - High Voltage Fast-Switching NPN Power Transistor (SemiWell Semiconductor)
  • SBR13003B1 - NPN Power Transistor (WINSEMI SEMICONDUCTOR)
  • SBR10 - SENSOR (Sensor Switch)
  • SBR10 - (SBR05 - SBR30) Standard Recovery 1-Phase Silicon Bridge Rectifier Assembly (Semtech Corporation)
  • SBR100-10J - SBR100-10J (Sanyo Semicon Device)
  • SBR100-10JS - 100V 10A Rectifier (Sanyo Semicon Device)
  • SBR100-16JS - 160V 10A Rectifier (Sanyo Semicon Device)
  • SBR10100 - 10.0 Amp Schottky Barrier Rectifiers (Secos)
  • SBR10100CT - 10A SBR Super Barrier Rectifier (Diodes Incorporated)
Other Datasheets by Diodes

Full PDF Text Transcription

Click to expand full text
NEW PRODUCT Features • Low Forward Voltage Drop • Low Reverse Leakage • Excellent High Temperature Stability • Patented Super Barrier Rectifier Technology • Soft, fast switching capability • +150°C Operating Junction Temperature • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) SBR130S3 1A SBR® SUPER BARRIER RECTIFIER Mechanical Data • Case: SOD323 • Case Material: Molded Plastic, “Green” Molding Compound. • Moisture Sensitivity: Level 1 per J-STD-020 • Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe. Solderable per MIL-STD-202, Method 208 • Weight: 0.004 grams (Approximate) SOD323 Top View Ordering Information (Note 4) Notes: Part Number SBR130S3-7 Case SOD323 Packaging 3,000/Tape & Reel 1.
