SDT30100CT

TRENCH SCHOTTKY RECTIFIER

Diodes

SDT30100CT Features

* Low Forward Voltage Drop

* Low Power Loss

* Excellent High Temperature Stability

* Soft, Fast Switching Capability

* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free. “Green” Device (Note 3) Description and Applications The Trench Schottky provide

SDT30100CT General Description

and Applications The Trench Schottky provides very low VF and extremely excellent reverse leakage stability at high temperatures. It is ideal for use as a rectifier, freewheel diode or blocking diode in:
* DC-DC Converters
* AC-DC Adaptors Mechanical Data
* Case: TO220AB, ITO220AB, ITO2.

SDT30100CT Datasheet (628.71 KB)

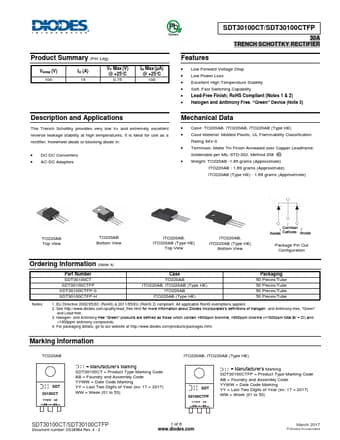

SDT30100CT Datasheet Preview — Preview of SDT30100CT PDF

Datasheet Details

Part number:

SDT30100CT

Manufacturer:

DIODES ↗

File Size:

628.71 KB

Description:

Trench schottky rectifier.
Product Summary (Per Leg) VRRM (V) 100 IO (A) 15 VF Max (V) @ +25°C 0.75 SDT30100CT/SDT30100CTFP Green 30A TRENCH SCHOTTKY RECTIFIER IR Max (µ.
