SDT20100CTFP

20A TRENCH SCHOTTKY RECTIFIER

Diodes

SDT20100CTFP Features

* Low Forward Voltage Drop

* Excellent High Temperature Stability

* Soft, Fast Switching Capability

* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free. “Green” Device (Note 3)

* For automotive applications requiring specific change control (i.e. part

SDT20100CTFP General Description

and Applications The Trench Schottky rectifier provides very low VF and extremely excellent reverse leakage stability at high temperatures. It is ideal for use as a rectifier, freewheel diode or blocking diode in:
* DC-DC converters
* AC-DC adaptors Mechanical Data
* Package: TO220AB, I.

SDT20100CTFP Datasheet (749.03 KB)

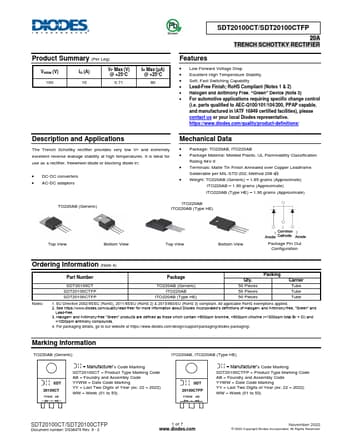

SDT20100CTFP Datasheet Preview — Preview of SDT20100CTFP PDF

Datasheet Details

Part number:

SDT20100CTFP

Manufacturer:

DIODES ↗

File Size:

749.03 KB

Description:

20a trench schottky rectifier.
Product Summary (Per Leg) VRRM (V) 100 IO (A) 10 VF Max (V) @ +25°C 0.71 SDT20100CT/SDT20100CTFP Green 20A TRENCH SCHOTTKY RECTIFIER IR Max (µ A).
