SDT20100CTB

20A TRENCH SCHOTTKY RECTIFIER

DIODES

SDT20100CTB Features

* Low Forward Voltage Drop

* Excellent High Temperature Stability

* Soft, Fast Switching Capability

* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free. “Green” Device (Note 3)

* For automotive applications requiring specific change control (i.e. part

SDT20100CTB General Description

and Applications The Trench Schottky provides very low VF and extremely excellent reverse leakage stability at high temperatures. It is ideal for use as a rectifier, freewheel diode or blocking diode in:
* DC-DC converters
* AC-DC adaptors Mechanical Data
* Package: TO263AB
* Packag.

SDT20100CTB Datasheet (611.98 KB)

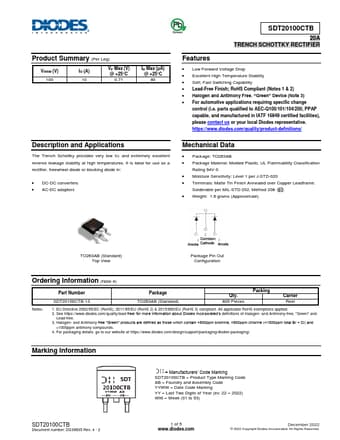

SDT20100CTB Datasheet Preview — Preview of SDT20100CTB PDF

Datasheet Details

Part number:

SDT20100CTB

Manufacturer:

DIODES ↗

File Size:

611.98 KB

Description:

20a trench schottky rectifier.
Product Summary (Per Leg) VRRM (V) 100 IO (A) 10 VF Max (V) @ +25°C 0.71 SDT20100CTB Green 20A TRENCH SCHOTTKY RECTIFIER IR Max (µA) @ +25°C 80 .
