SDT20100GCT

20A TRENCH SCHOTTKY RECTIFIER

DIODES

SDT20100GCT Features

* Low Forward Voltage Drop

* Excellent High Temperature Stability

* Soft, Fast Switching Capability

* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free. “Green” Device (Note 3)

* For automotive applications requiring specific c

SDT20100GCT General Description

and Applications The SDT20100GCT/SDT20100GCTFP provides very low VF and extremely excellent reverse leakage stability at high temperatures. It is ideal for use as a rectifier, freewheel diode or blocking diode in:

* DC-DC converters

* AC-DC adaptors Mechanical Data

* Package.

SDT20100GCT Datasheet (283.96 KB)

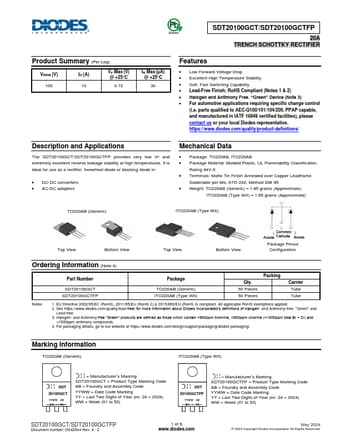

SDT20100GCT Datasheet Preview — Preview of SDT20100GCT PDF

Datasheet Details

Part number:

SDT20100GCT

Manufacturer:

DIODES ↗

File Size:

283.96 KB

Description:

20a trench schottky rectifier.
SDT20100GCT/SDT20100GCTFP Green 20A TRENCH SCHOTTKY RECTIFIER Product Summary (Per Leg) VRRM (V) 100 IO (A) 10 VF Max (V) @ +25°C 0.72 IR Max (µ .
