SDT20120VCT - 20A TRENCH SCHOTTKY RECTIFIER

Product Overview

Diodes

Datasheet Details

Part number	SDT20120VCT
Manufacturer	DIODES
File Size	307.37 KB
Description	20A TRENCH SCHOTTKY RECTIFIER
Datasheet	SDT20120VCT Datasheet

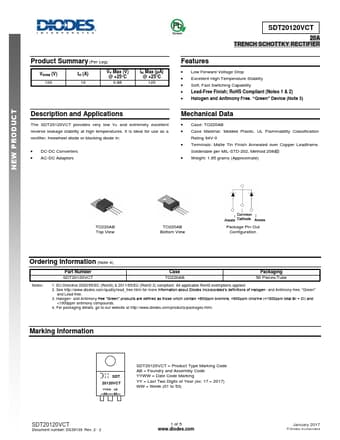

Additional preview pages of the SDT20120VCT datasheet.

Product details

Description

and Applications The SDT20120VCT provides very low VF and extremely excellent reverse leakage stability at high temperatures.It is ideal for use as a rectifier, freewheel diode or blocking diode in: DC-DC Converters AC-DC Adaptors

Features

Low Forward Voltage Drop.
Excellent High Temperature Stability.
Soft, Fast Switching Capability.
Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3) Mechanical Data.
Case: TO220AB.
Case Material: Molded Plastic, UL Flammability Classification Rating 94V-0.
Terminals: Matte Tin Finish Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208.
Weight: 1.85 grams (Approximate) NEW.
