SDT200 - Thyristor-Diode Modules

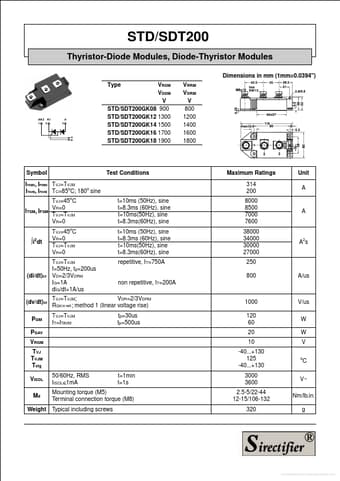

STD/SDT200 Thyristor-Diode Modules, Diode-Thyristor Modules Dimensions in mm (1mm=0.0394") Type VRSM VDSM V STD/SDT200GK08 900 STD/SDT200GK12 1300 STD/SDT200GK14 1500 STD/SDT200GK16 1700 STD/SDT200GK18 1900 VRRM VDRM V 800 1200 1400 1600 1800 Symbol ITRMS, IFRMS TVJ=TVJM ITAVM, IFAVM TC=85oC; 180o sine TVJ=45oC VR=0 TVJ=TVJM VR=0 TVJ=45oC VR=0 TVJ=TVJM VR=0 TVJ=TVJM f=50Hz, tp=200us VD=2/3VDRM IG=1A diG/dt=1A/us Test Conditions Maximum Ratings 314 200 Unit A ITSM, IFSM t=10ms (50Hz), sine

SDT200 Features

* International standard package

* Direct copper bonded Al2O3-ceramic base plate

* Planar passivated chips

* Isolation voltage 3600 V~ APPLICATIONS

* Motor control

* Power converter

* Heat and temperature control for industrial furnaces and chemical processes

* Light
