SDT20A100CTFP

20A TRENCH SCHOTTKY RECTIFIER

Diodes

SDT20A100CTFP Features

* Low Forward Voltage Drop

* Low Power Loss

* Excellent High Temperature Stability

* Soft, Fast Switching Capability

* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free. “Green” Device (Note 3)

* For automotive applications requiring specific chan

SDT20A100CTFP General Description

and Applications The Trench Schottky provides very low VF and extremely excellent reverse leakage stability at high temperatures. It is ideal for use as a rectifier, freewheel diode or blocking diode in:
* DC-DC Converters
* AC-DC Adaptors Mechanical Data
* Case: TO220AB, ITO220AB
*.

SDT20A100CTFP Datasheet (698.41 KB)

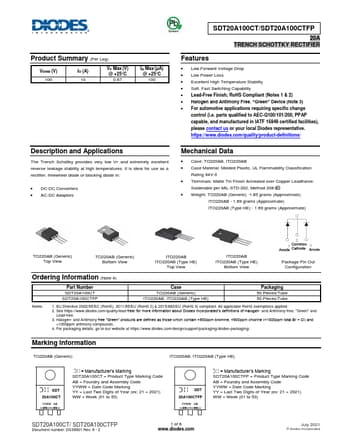

SDT20A100CTFP Datasheet Preview — Preview of SDT20A100CTFP PDF

Datasheet Details

Part number:

SDT20A100CTFP

Manufacturer:

DIODES ↗

File Size:

698.41 KB

Description:

20a trench schottky rectifier.
NEW PRODUCT Product Summary (Per Leg) VRRM (V) 100 IO (A) 10 VF Max (V) @ +25°C 0.67 Green SDT20A100CT/SDT20A100CTFP 20A TRENCH SCHOTTKY RECTIF.
