SDT20A120CTFP

20A TRENCH SCHOTTKY RECTIFIER

DIODES

SDT20A120CTFP Features

* Low Forward Voltage Drop

* Low Power Loss

* Excellent High Temperature Stability

* Soft, Fast Switching Capability

* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free. “Green” Device (Note 3)

* For automotive applications requiring specific chan

SDT20A120CTFP General Description

and Applications The Trench Schottky provides very low VF and extremely excellent reverse leakage stability at high temperatures. It is ideal for use as a rectifier, freewheel diode or blocking diode in:
* DC-DC converters
* AC-DC adaptors Mechanical Data
* Package: TO220AB, ITO220AB

SDT20A120CTFP Datasheet (699.24 KB)

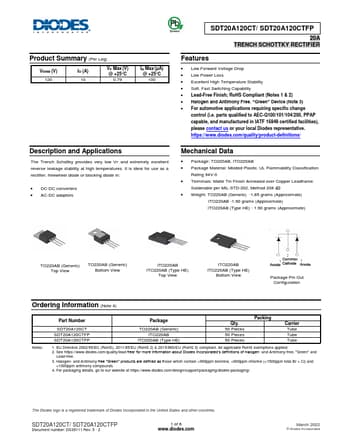

SDT20A120CTFP Datasheet Preview — Preview of SDT20A120CTFP PDF

Datasheet Details

Part number:

SDT20A120CTFP

Manufacturer:

DIODES ↗

File Size:

699.24 KB

Description:

20a trench schottky rectifier.
Product Summary (Per Leg) VRRM (V) 120 IO (A) 10 VF Max (V) @ +25°C 0.79 Green SDT20A120CT/ SDT20A120CTFP 20A TRENCH SCHOTTKY RECTIFIER IR Max.
