SMAJ14AQ Datasheet - Diodes

400W SURFACE MOUNT AUTOMOTIVE TRANSIENT VOLTAGE SUPPRESSOR

SMAJ14AQ Features

* 400W Peak Pulse Power Dissipation

* 5V to 200V Standoff Voltages

* Glass Passivated Die Construction

* Unidirectional and Bidirectional Versions Available

* Excellent Clamping Capability

* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

* Halo

SMAJ14AQ General Description

and Applications Suitable to protect sensitive automotive circuits against surges defined in ISO7637-2 and against electrostatic discharges according to ISO10605. Compliance with following standards * ISO10605, C = 150pF, R = 330Ω: 30kV (Air Discharge) 30kV (Contact Discharge) * ISO7.

SMAJ14AQ Datasheet (369.65 KB)

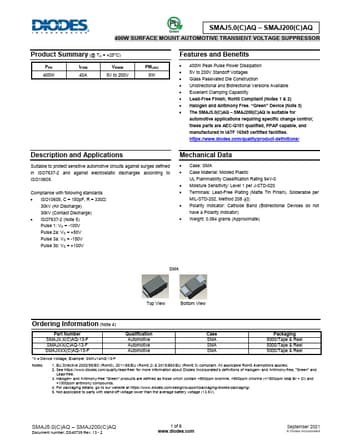

SMAJ14AQ Datasheet Preview — Preview of SMAJ14AQ PDF

Datasheet Details

Part number:

SMAJ14AQ

Manufacturer:

DIODES ↗

File Size:

369.65 KB

Description:

400w surface mount automotive transient voltage suppressor.
SMAJ5.0(C)AQ SMAJ200(C)AQ 400W SURFACE MOUNT AUTOMOTIVE TRANSIENT VOLTAGE SUPPRESSOR Product Summary (@ TA = +25°C) PPK 400W IFSM 40A VR.
