SMAJ14A, SMAJ5.0A Datasheet - Vishay

SMAJ14A Transient Voltage Suppressors

www.vishay.com SMAJ5.0A thru SMAJ188CA Vishay General Semiconductor Surface-Mount TRANSZORB® Transient Voltage Suppressors Cathode SMA (DO-214AC) Anode (unidirectional) (bidirectional) LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models PRIMARY CHARACTERISTICS VBR uni-directional VBR bi-directional VWM PPPM PD IFSM TJ max. Polarity 6.40 V to 231 V 6.40 V to 231 V 5.0 V to 188 V 400 W, 300 W 3.3 W 40 A 150 °C Unidirectional, bidirectional Package SMA (DO-214AC) DEVICES FOR BIDIRECTION APPL.

SMAJ14A Features

* Low profile package Available

* Ideal for automated placement

* Glass passivated chip junction

* Available in unidirectional and bidirectional

* 400 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 % (300 W a

SMAJ5.0A-Vishay.pdf

This datasheet PDF includes multiple part numbers: SMAJ14A, SMAJ5.0A. Please refer to the document for exact specifications by model.

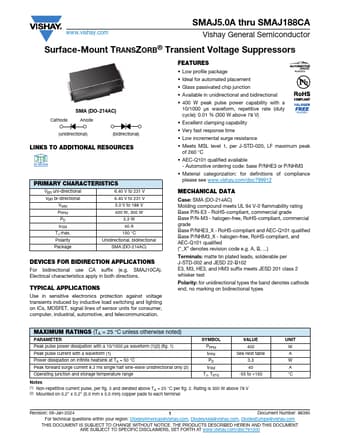

SMAJ14A Datasheet Preview Page 2 SMAJ14A Datasheet Preview Page 3

Datasheet Details

Part number:

SMAJ14A, SMAJ5.0A

Manufacturer:

Vishay ↗

File Size:

108.62 KB

Description:

Transient voltage suppressors.

Note:

This datasheet PDF includes multiple part numbers: SMAJ14A, SMAJ5.0A.
Please refer to the document for exact specifications by model.
