SMAZ30, SMAZ5V1, 1.0W SURFACE MOUNT ZENER DIODE

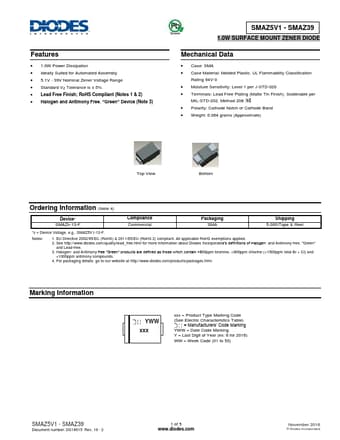

datasheet Preview Page 1 from Datasheet4u.com

SMAZ5V1-Diodes.pdf

SMAZ30 Datasheet Preview — This datasheet PDF includes multiple part numbers: SMAZ30, SMAZ5V1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SMAZ30, SMAZ5V1

Manufacturer:

DIODES ↗

File Size:

363.58 KB

Description:

1.0W SURFACE MOUNT ZENER DIODE

Note:

This datasheet PDF includes multiple part numbers: SMAZ30, SMAZ5V1.
Please refer to the document for exact specifications by model.

Features

* 1.0W Power Dissipation
* Ideally Suited for Automated Assembly
* 5.1V - 39V Nominal Zener Voltage Range
* Standard VZ Tolerance is ± 5%
* Lead Free Finish; RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3) SMAZ5V1 - SMAZ39 Green 1.0W SURFACE
