STPRF1605CT - 16A SUPER-FAST GLASS PASSIVATED RECTIFIER

Diodes

Datasheet Details

Part number	STPRF1605CT
Manufacturer	DIODES ↗
File Size	85.37 KB
Description	16A SUPER-FAST GLASS PASSIVATED RECTIFIER

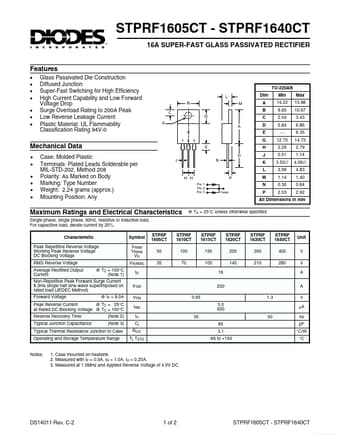

Datasheet	STPRF1605CT_Diodes.pdf

Glass Passivated Die Construction Diffused Junction Super-Fast Switching for High Efficiency High Current Capability and Low Forward Voltage Drop Surge Overload Rating to 200A Peak Low Reverse Leakage Current Plastic Material: UL Flammability Classification Rating 94V-0 TO-220AB L B C K D A 1 2 3 Dim M Min 14.22 9.65 2.54 5.84 ¾ 12.70 2.29 0.51 3.53Æ 3.56 1.14 0.30 2.03 Max 15.88 10.67 3.43 6.86 6.35 14.73 2.79 1.14 4.09Æ 4.83 1.40 0.64 2.92 A B C D.
