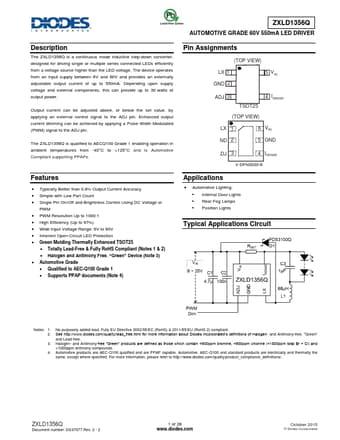

Part number: ZXLD1356Q
Manufacturer: DIODES (https://www.diodes.com/)
File Size: 1.22MB
Download: 📄 Datasheet
Description: AUTOMOTIVE GRADE 60V 550mA LED DRIVER
* Typically Better than 0.8% Output Current Accuracy
* Simple with Low Part Count
* Single Pin On/Off and Bright.
The ZXLD1356Q is a continuous mode inductive step-down converter, designed for driving single or multiple series connected LEDs efficiently from a voltage source higher than the LED voltage. The device operates from an input supply between 6V and 60V.
Image gallery
