BC857A Datasheet - Diotec Semiconductor

BC857A SMD General Purpose PNP Transistors

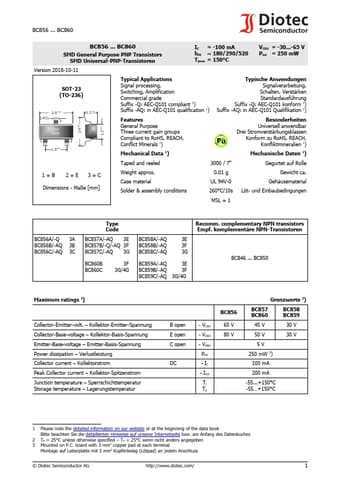

BC856 BC860 BC856 BC860 PNP Surface Mount General Purpose Si-Epi-Planar Transistors Si-Epi-Planar Universaltransistoren für die Oberflächenmontage Version 2015-05-12 2.9 ±0.1 0.4+0.1 -0.05 3 Type Code 2.4 ±0.2 1.3±0.1 1.1+0.1 -0.2 Power dissipation Verlustleistung Plastic case Kunststoffgehäuse Weight approx. Gewicht ca. 12 1.9±0.1 Dimensions - Maße [mm] 1=B 2=E 3=C Plastic material has UL classification 94V-0 Gehäusematerial UL94V-0 klassifiziert Standard pack.

BC857A_DiotecSemiconductor.pdf
