SA156 Datasheet - Diotec Semiconductor

SA156 Fast Switching Surface Mount Si-Rectifiers

SA 154 … SA 160 Fast Switching Surface Mount Si-Rectifiers Schnelle Si-Gleichrichter für die Oberflächenmontage Nominal current Nennstrom Repetitive peak reverse voltage Periodische Spitzensperrspannung Plastic case MELF Kunststoffgehäuse MELF Weight approx. Gewicht ca. Plastic material has UL classification 94V-0 Gehäusematerial UL94V-0 klassifiziert Dimensions / Maße in mm 1A 50…1000 V DO-213AB 0.12 g Standard packaging taped and reeled Standard Lieferform gegurtet auf R.

SA156 Datasheet (163.58 KB)

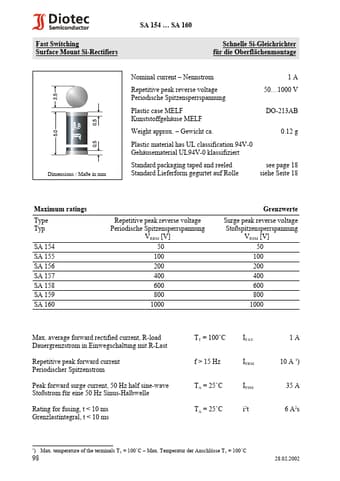

Preview of SA156 PDF
SA156 Datasheet Preview Page 2

Datasheet Details

Part number:

SA156

Manufacturer:

Diotec Semiconductor

File Size:

163.58 KB

Description:

Fast switching surface mount si-rectifiers.
